CMScore –
High yields, no downtime
Monitoring made easy. Predictable continous operation.
An enhancement for any existing plant
CMScore – quality data for reliable drivetrain diagnostics
CMScore rethinks condition monitoring: designed to reduce costs without compromising on Bachmann‘s proven quality.
CMScore focuses on data acquisition and transfer, with analysis being performed centrally. This permits high-quality diagnostics and effective comparison with multiple systems of the same type at minimum investment cost.
4 REASONS FOR CMScore

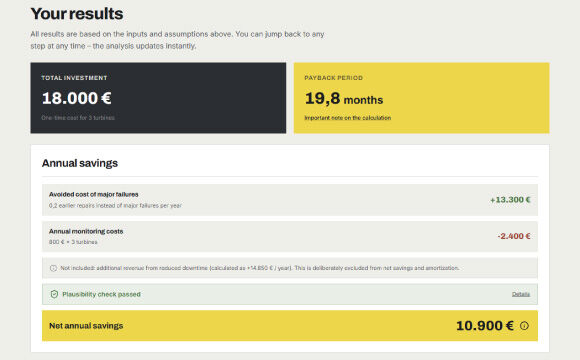

CMScore combines a fast return on investment (ROI) with sustainable yield security. Developed for operators wishing to safeguard the fruitful continued operation of their existing plants.
CMScore sustainably reduces the procurement and replacement costs of CMS equipment and enables economical condition monitoring, to Bachmann’s proven high quality standards.
CMScore relies on reliable and robust standard accelerometers. If desired, these can be supported by existing sensor technology, thereby ensuring cost-efficient and reliable maintenance planning.
CMScore data flows into a database of measurements from thousands of wind turbines, serving as a basis for robust analyses that have been proven in the field.

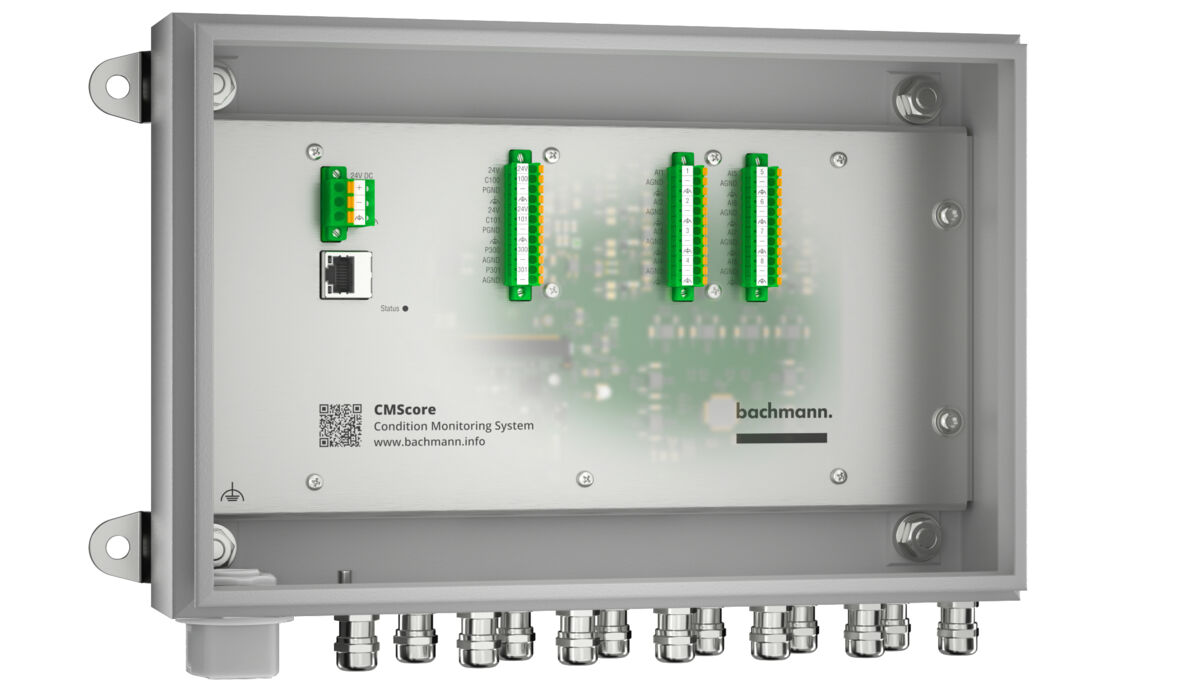

Compact hardware. Quick replacement. Long-term yield security.
CMScore offers operators a simple, secure and high-quality CMS solution at minimum cost. The use of Bachmann or existing IEPE sensors enables existing systems to be either replaced or upgraded. Specially designed for condition-based maintenance of the drive train, CMScore enables early damage detection, which reduces unplanned downtime and allows for predictive maintenance to minimize costs and secure profits.
ULTRA-SLIM
30 x 20 x 8 cm
ULTRA-LIGHTWEIGHT
~ 2,6 kg
ULTRA-PRICE WORTHY
Lightweight and simple – efficient monitoring with no additional effort

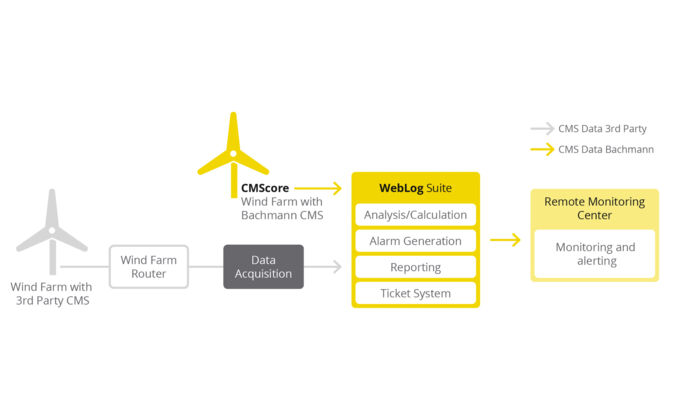

CMScore has deliberately been designed for simplicity and the avoidance of additional effort. The system collects measurement data and transmits it to the “WebLog Suite” server-based database. There, the information is processed, analysed and automatically converted into alarms and reports. Our remote monitoring team monitors the systems and provides information in the event of alarms. In most cases, this leaves sufficient time for directed repair measures to be launched and major long-term damage to be prevented.

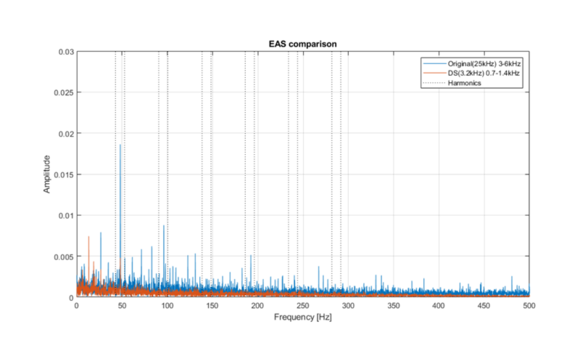

Reliable data for sound decisions – IEPE rather than MEMS
CMScore relies on standard piezoelectric acceleration sensors (IEPE), which enable high sampling rates of up to 25.6 kHz, rather than low-cost sensors (MEMS). IEPE sensors provide precise and stable measurement data, particularly for drivetrain components with low rotation speeds. Higher signal quality and reliable diagnostics extend service life and significantly reduce unplanned downtime.
The Benefit – Clarity
Installation and operating costs are minimal. The results of data analysis considerably improve the reliability of information for more effective maintenance and repair scheduling.

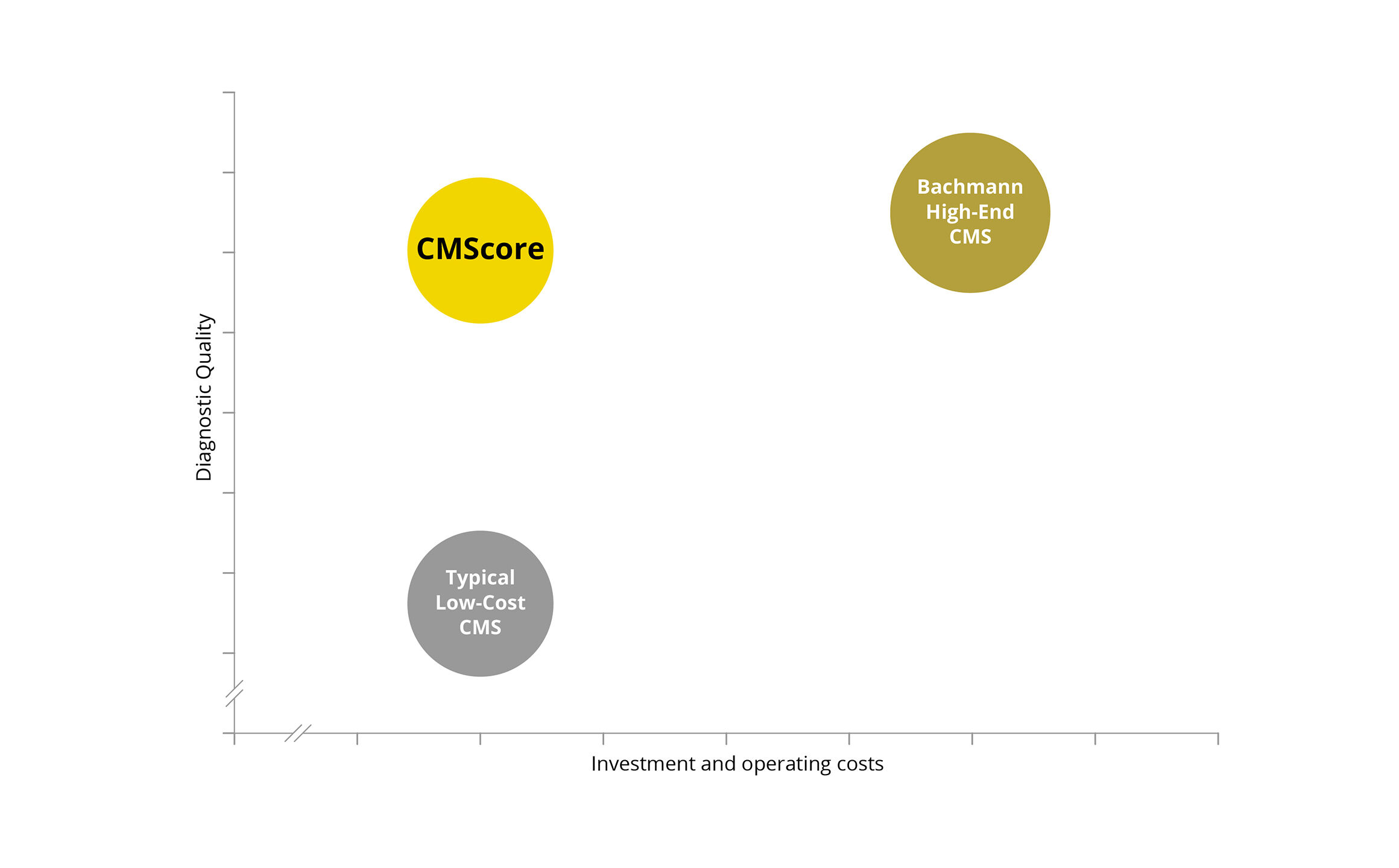

Maximum diagnostic quality. Minimum costs.
The economical condition monitoring system for sound decisions throughout the entire life cycle of your equipment.
CMScore combines low investment and operating costs with high diagnostic quality. Early and reliable detection of bearing and gear damage in the drive train is a key factor for the economical operation of wind turbines, particular older systems which have been inadequately monitored to date. The compact, robust system is ideal for replacing or retrofitting existing CMSs; the reuse of existing IEPE sensors significantly reduces the costs of acquisition, installation and replacement. Robust IEPE sensor technology and high sampling rates provide the basis for precise diagnostics, predictable maintenance measures and reduced unplanned downtime and costs. With the WebLog Suite, operators, service providers and asset managers benefit from a uniform analysis and reporting process, including for mixed farms. Tool changes are less frequent, alarms are unambiguous and decisions are faster. CMScore stands for cost-effectiveness, flexibility and reliability
Bachmann Remote Monitoring Service – maximum security
Based on condition monitoring expertise gained from over 10,000 systems, the op-tional Remote Monitoring Service takes care of all condition monitoring – from commissioning and data analysis to precise diagnosis. DNV-certified processes, WebLog access and informative reports ensure transparency and direct alerts in the event of errors. Reliable recommendations for action enable informed decisions to be taken for condition-based maintenance.
Overview of Bachmann CMS solutions
All product lines are based on quality, robustness and intelligent system design. CMScore, CMScompact and CMSadvanced are designed for different requirements and areas of application.
CMScore is the optimal low-cost solution that focuses on basic drivetrain monitoring, while CMSadvanced delivers a complex, expandable, and modular condition monitoring system for comprehensive wind turbine monitoring. CMScompact fits in between as a middle-class solution.
| Functions | CMScore | CMScompact | CMSadvanced | Extended applications for CMSadvanced |
| High-quality drivetrain monitoring | ||||
| Sampling rate up to | 25.6 kHz | 51.2 kHz | 51.2 kHz | |
| IEPE Sensors | ||||
| Optional field bus support | – | Use of external sensor information for advanced signal processing and data correlation | ||
| Oil particle counting | – | Connection of oil particle counters | ||
| Extended range of functions and modular expandable input channels | – | – | Extension of the sensor scope for complex drive train designs and SHM tasks and everything for perfect customization | |
| DNV certified | – | – | Compliance with offshore requirements |
We account for everything

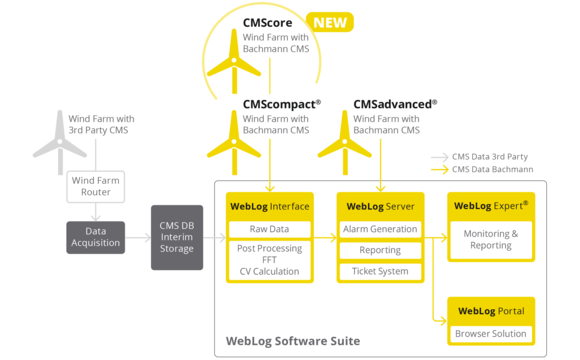

CMScore provides reliable data aggregation and secure data transfer to our WebLog Interface – where all calculations are performed. CMSadvanced, on the other hand, performs calculations locally, enabling status information to be utilized directly in system control. For example, to protect components through rapid intervention.
I would like to know more about CMScore!
CMScore – the Game Changer
Download brochure
