Straight to the Target
Controllab Products B.V.
Bachmann Control System as Target for 20-sim 4C
Controllab Products B.V. is a company based in Enschede, Holland, and was founded in 1995 as a spin-off of the Technical University of Twente (NL). It is a specialist in complex closed-loop control tasks. the Bachmann automation system was implemented as the first industrial PLC to be the target for 20-sim 4c, the compiler environment of its 20-sim modeling and simulation program.
The 20-sim graphical modeling tool can be used to simulate dynamic electrical, mechanical or hydraulic systems or combinations of them. Open libraries that allow the equations behind the block diagram elements to be viewed and adapted, directly support the user for more efficient modeling. Different toolboxes for carrying out tests in the time and frequency range, for designing control structures or for creating three-dimensional mechanical models and their animation ensure the considerably user-friendly design and simulation of even complex systems. "This enables systems to be optimized very simply in terms of speed, vibration and robustness," emphasizes Christian Kleijn, CEO of Controllab Products B.V.
From the Simulation Directly Onto the PLC

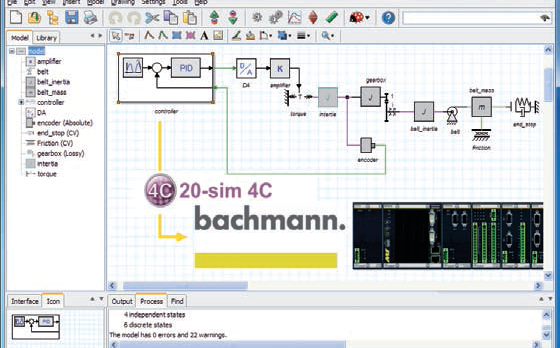

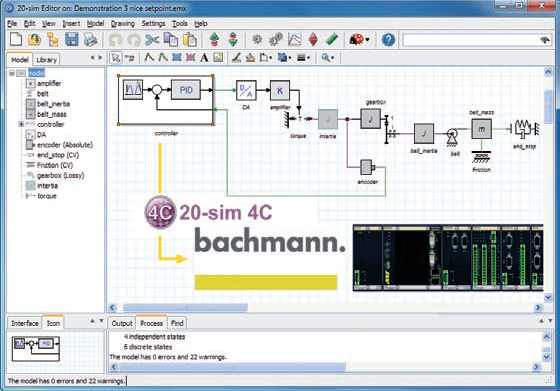

20-sim 4C establishes the connection of 20-sim models with the physical system and makes it into a time and cost saving tool for rapid prototyping. Thanks to the outstanding collaboration between the development teams of Controllab and Bachmann, Bachmann's new communication library can now be used to export the C code created from the 20-sim model directly to the Bachmann control system without any intermediate stages. The result is a success that can't be ignored. in 20-sim 4C the input and output variables of the model simulated and analyzed in 20-sim are connected directly with the channels on the corresponding Bachmann hardware modules. The entire confi guration is then compiled and loaded onto the Bachmann controller. in this process, the Bachmann com is used to automatically copy the executable *.m file onto the PLC and install the software module in the mconfig.ini file. The 20-sim 4C user interface is used to start (and stop) the application, monitor and log the relevant variables, and modify the parameters online. All parameters of the software module are also available as SVi variables and can thus, as is usually possible in the Bachmann control system, be embedded in other tasks (M-PLC, C/C++, Simulink, etc.) or also in user interfaces implemented with M-JViS.
Successful Users

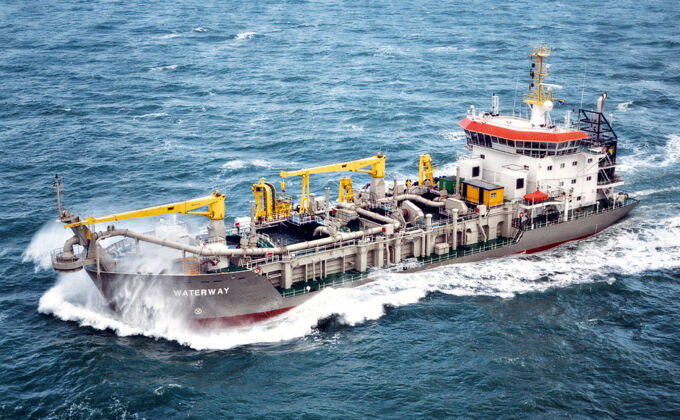

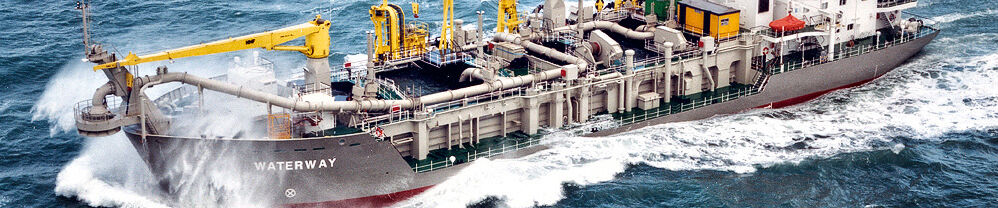

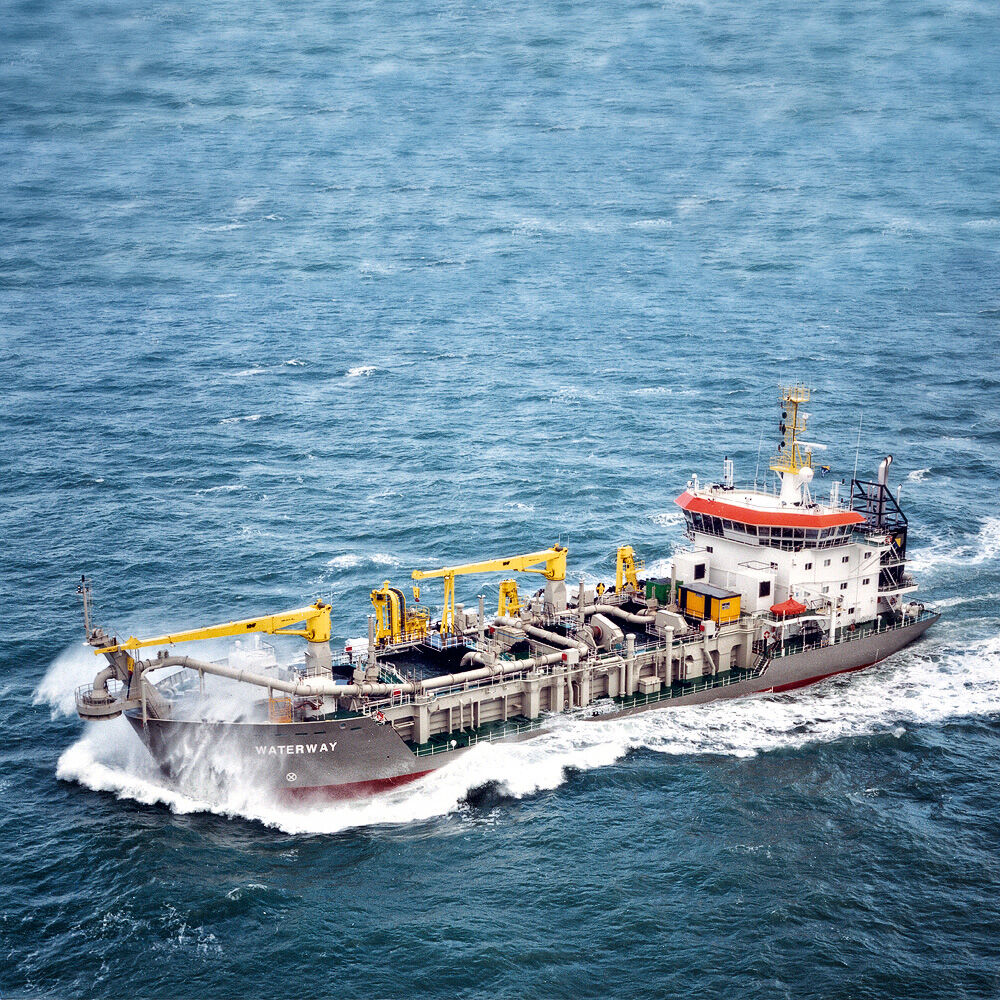

The Dutch company royal Boskalis Westminster n.V. is an international service company that is active worldwide in 65 countries in the field of maritime infrastructures, dredging and earth moving, as well as in terminal services. Tjeerd Heeringa, senior project engineer at the company, has been working with the 20-sim modeling and simulation tool for over 15 years. He is particularly delighted with the possibility it offers to create bond graph models. This enables him to link electrical, mechanical and hydraulic systems in a model without having to deal with the descriptive equations behind them. "The ability to combine different systems in one model, to clearly display complex systems, and to determine the power flow directly are a great benefit when simulating controllers used on dredgers," explains Tjeerd Heeringa. He is pleased with the integration of the Bachmann conroller as a target for 20-sim 4C: "i can now copy the simulated model directly to the PLC which controls the actual installation."
