Wind Turbine Visualization and Access Control
SCADA and HMI combined with the highest levels of cyber security.
Access Control – Security and Access Protection
- Secure authentication
- Access handler and encryption module
- Logging
During times of possible, targeted cyber attacks on energy facilities, secure access to wind farms and individual turbines is crucial. An end-to-end access control system - from dial-in at the controller, to the SCADA system; along with access and modification logging, offers the highest level of protection. The modular design of the access handler and encryption module allows the implementation of customer-specific encryption algorithms.
forsiteSCADA®
- High scalability, open system
- Use of standard communication protocols OPC UA and IEC 61400-25 / IEC 61850-7-420
- CMS integration according to ISO 10816-21 / VDI 3834 for wind turbines
- Cascading – available as an option for all product levels
forsiteSCADA®is an innovative SCADA solution for energy management in hybrid power plants. It is based on atvise® SCADA, which offers users absolute consistency at all levels with pure web technology. This means that visualization can be operated via a standard browser on any PC, tablet, or smartphone.
forsiteSCADA® implements communication standards such as OPC Unified Architecture (OPC UA) and IEC energy protocols. The OPC UA interface conveniently integrates live process data and alarms. Data can be historicized via this interface in SCADA or as high-precision and finegrained logging directly on the plant controller.
The integration of Bachmann CMS is implemented in forsiteSCADA® acc. to ISO 10816-21 (VDI 3834) and offers a major advantage when it comes to turbine maintenance and fault analysis.
In every product configuration, forsiteSCADA® maps all relevant levels: From the global view of the regions and wind farms to the individual turbine. Numerous displays of the most important key figures for energy generators, parks, and the entire generation plant are already included.

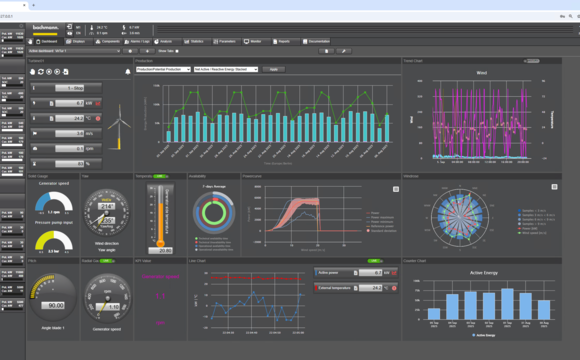

forsiteSCADA® offers the possibility of creating reports. These are managed via the dashboard configurations. The user can either create an ad hoc report from the currently active dashboard or store an automatic report for a specified period via a configuration menu.
WebMI - Turbine Visualization
- Web visualization
- Focused representation
- Flexible upgrades
- IEC 61400-25 data structures
We also rely on atvise webMI technology for turbine operation. The visualization displays all turbine values, parameters and alarms - clear table presentation and simple design enable effective on-site operation.
Turbine visualization can also be specifically adapted and upgraded using standard development tools. The turbine can also be operated remotely thanks to the browser-based visualization, which is loaded from the integrated controller web server.
The access security concept, in addition to providing authorized login and logging, also ensures that write access is granted on a location-specific basis.
