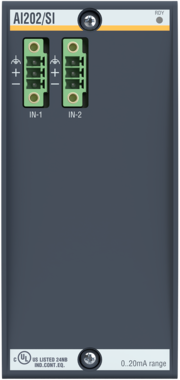

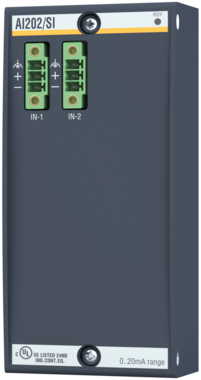

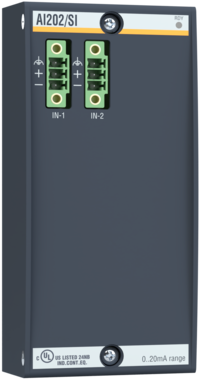

AI202/SI
Analog Input Module
The analog input modules AI202/SI and AI204/SI offer 2 or 4 high resolution analog 16 bit current input channels. Single channel isolation, high immunity to interference, as well as integrated signal filtering (delta-sigma converter) make this module particularly interesting for process technology.
Features
- 2 or 4 analog inputs
- Input current 0 to 20 mA
- Input impedance 75 Ω
- Resolution: 16 bit
- Refresh cycle time 250 ms / channel
- Galvanic isolation of channels
- Galvanic isolation from system
- Monitoring of internal voltages
