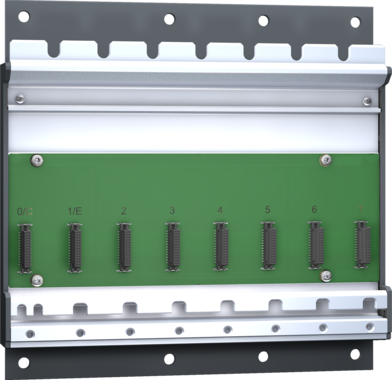

BPS108_iso_left

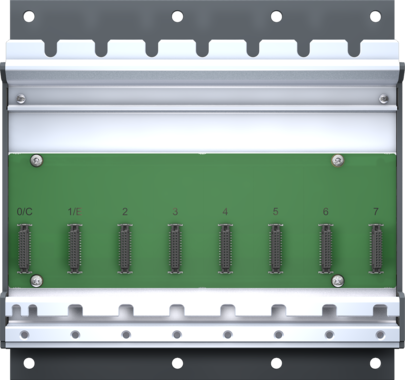

BPS108_front

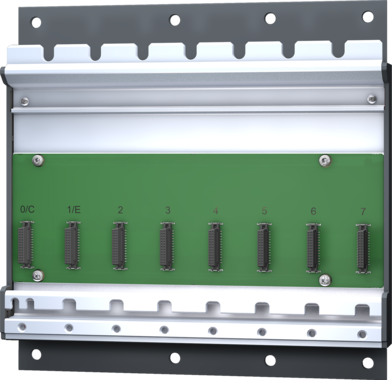

BPS108_iso_right

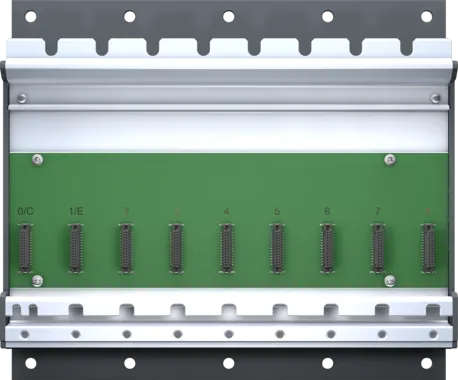

BPS109_front
1 / 4

The backplane combines the node adapter and the I/O modules into a mechanically robust EMC compliant unit. Fully fitted I/O stations can thus be pretested after mounting and transferred to the application without further modification. This assembly enables individual modules to be exchanged and retrofitted without having to remove the unaffected modules.

The backplane enables real-time communication between modules as well as with the node adapter, provides the power supply to the logic side of the modules and enables module-to-module communication.

Fastening with solid M5 screws makes this variant ideal for environments subject to high shock and vibration loads. The solid metal body and large mounting area on the rear allow high heat dissipation to the support structure. This increases thermal reserves for applications involving high ambient temperatures.



Features

  • M100 system backplane for screw mounting
  • 4 to 32 slots
  • Mechanically robust, self-supporting base for modules
  • Module exchange without the removal of other modules
  • Enables complete pre-assembly and testing
  • Any slots possible as reserve (gaps)
  • Enhanced heat dissipation via rear mounting surface

Approvals / Certificates

Marine classification in preparation
