Malfunctions and failures in important operating components reduce the uptimes for machines and plants. In addition to this, they often lead to consequential damage and lengthy repairs. This involves considerable costs, and the production downtime leads to financial losses.

Automation devices from plant, transport and mechanical engineering are no longer unthinkable. They control and regulate mission critical systems – often entirely stand-alone or with requirements that manual operation can no longer perform. Ever-increasing demands on productivity, including 24/7 availability, also require the automation system to be highly reliable and to offer solutions for high-availability applications. Proven ruggedness and exceptional service life data are often insufficient here. Effective measures against network, sensor and wiring outages, as well as statistically rare component part failure, are required.

Bachmann electronic with its scalable redundancy products for the proven Bachmann automation system always provides the right solution. The redundancy product series upgrades the significant ruggedness and availability of the hardware modules with universal fault tolerance. The software-only implementation based on a redundant real-time Ethernet network guarantees compatibility without special and expensive redundancy hardware and enables retrofitting of existing applications.

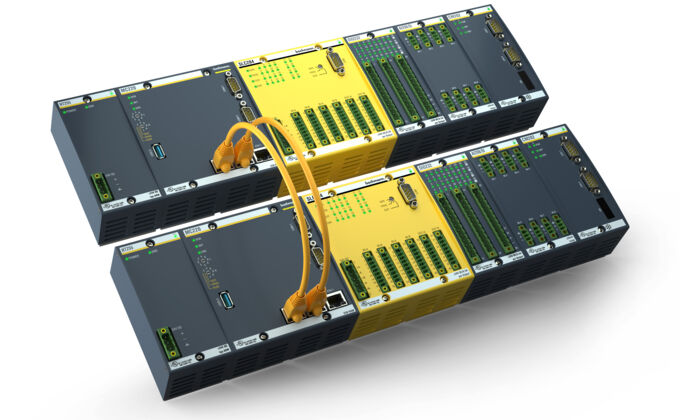

2021_Motiv_Redundanz_HGweiss

The right solution for each application

Hot-standby Redundancy
Maximum reliability thanks to fully automatic variable exchange and bumpless application switchover. Ideal where failures are economically unacceptable and for technical challenges like in rapid control applications.

Warm-standby Redundancy
Values interchange is supported by network redundancy. Adjusts to redundant data recording and for simple and less critical redundancy applications.

Network Redundancy
Using the basic redundancy version, critical transmission links are protected against interruptions due to mechanical damage and network equipment failures.

Features
  • Redundancy cycles up to 1 ms possible*
  • Automatic switchover between variables and process value sources within one PLC cycle
  • Support of fully autonomous, dual communication guarantees maximum reliability with freely selectable transmission medium (copper/optical fiber)
  • Integration of configuration, monitoring and programming in the engineering tool SolutionCenter
  • Redundancy networking on Ethernet basis, full support of TCP/IP-based parallel communication
  • Networking topology freely selectable: star, bus, ring and combinations easily adaptable to existing network
  • Master CPUs: all processor modules from the MPC, MC, MH series
  • Retrofitable and upgradable without CPU exchange, application of standard components
  • Support of standard applications in addition to redundancy applications, even with diverse cycle times
  • Standard operating range of -30 to +60 °C, with short-term Temperature peaks of -40 to +70 °C with condensation present when using cold climate modules



* tested with CPUs of the MPC series; limit value subject to CPU type, memory available, application size, number of exchangeable variables, network bandwidth available, network and CPU load via nonredundant applications

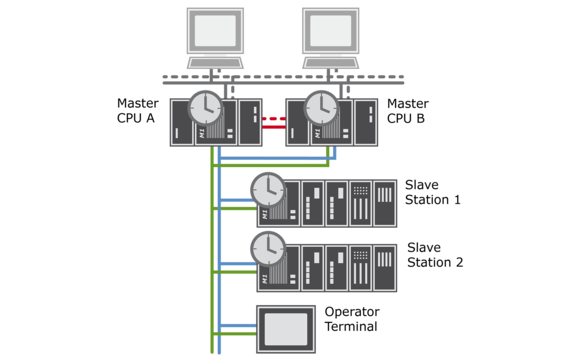

Hot-Standby Redundancy

Features
Two master CPUs
Automatic matching of the master CPUs
Bumpless switchover
Chronological synchronization of all stations
Configuration and monitoring in the SolutionCenter
Expanded diagnostic and programming interfaces for monitoring and analysis of redundancy status
Network redundancy included
Freely adjustable switchover time, automatic switchover in case of error
topologie_hot_standby_redundanz

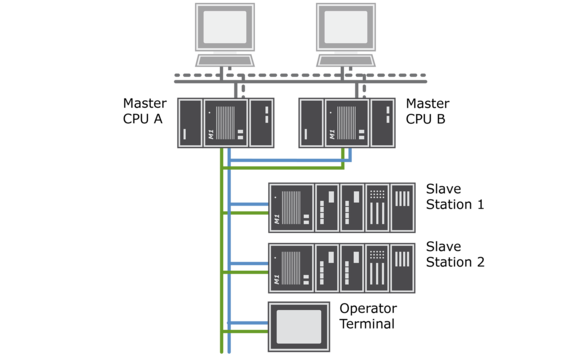

Warm-Standby-Redundanz

Features
Two master CPUs
Diagnostic interface for monitoring and analyzing the redundancy status
Slaves decide from which CPU the data packet is applied (voter)
Switching time configurable
Matching of the master CPUs not integrated
topologie_warm_standby_redundanz

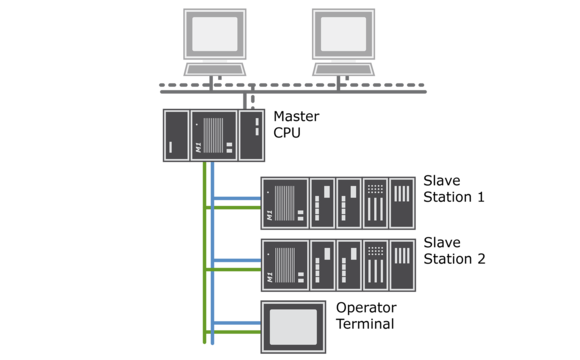

Network Redundancy

Features
One master CPU
Redundant communication (cyclic and non-cyclic communication)
Easy configuration in development environment, integrated diagnostics (status, quality)
Programming interface, libraries and system variables for easy creation of applications
Slaves work as smart substations
Network switchover in the same PLC cycle
topologie_netzwerk_redundanz
