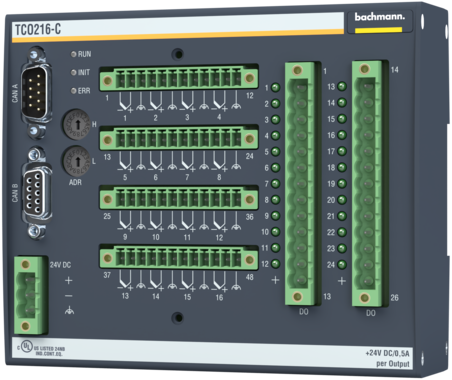

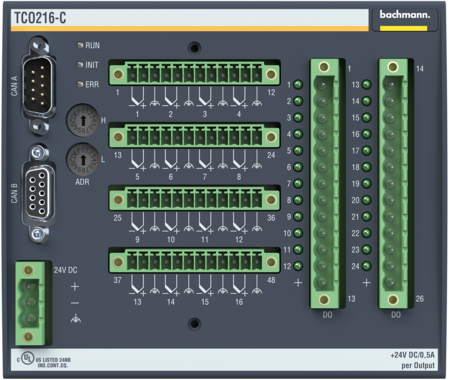

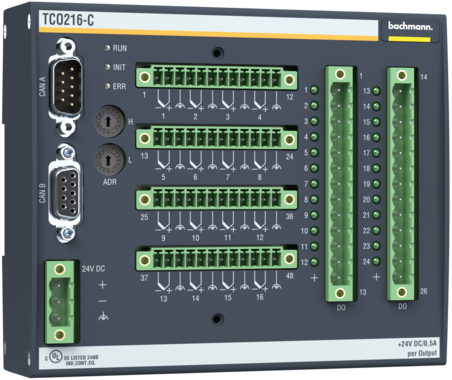

The temperature I/O modules, TCO208-C and TCO216-C are stand-alone CAN slave modules with 8 or 16 thermocouple inputs and 12 or 24 digital outputs.



Features

  • Stand-alone, compact CAN slave module
  • Thermocouple inputs for thermocouple types J and K
  • Measuring range 0 to +500°C/ +800°C configurable
  • Sensor break detection
  • Digital outputs each with 1 A
  • Supply voltage 18 to 34 VDC
  • Operating range 0 to +60°C
  • Snappable on EN 50022 backplanes
  • CAN node ID can be set (hex switch)
  • Baud rate is adjustable (hex switch)

Approvals / Certificates

Datasheet

TCO216-C

TCO208-C, TCO216-C CAN Slave EN
PDF - 201 Kb
TCO208-C, TCO216-C CAN Slave EN
TCO208-C, TCO216-C CAN Slave DE
PDF - 209 Kb
TCO208-C, TCO216-C CAN Slave DE
