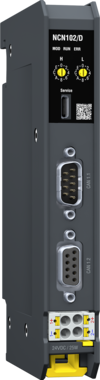

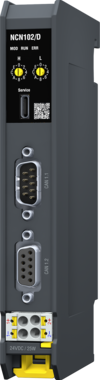

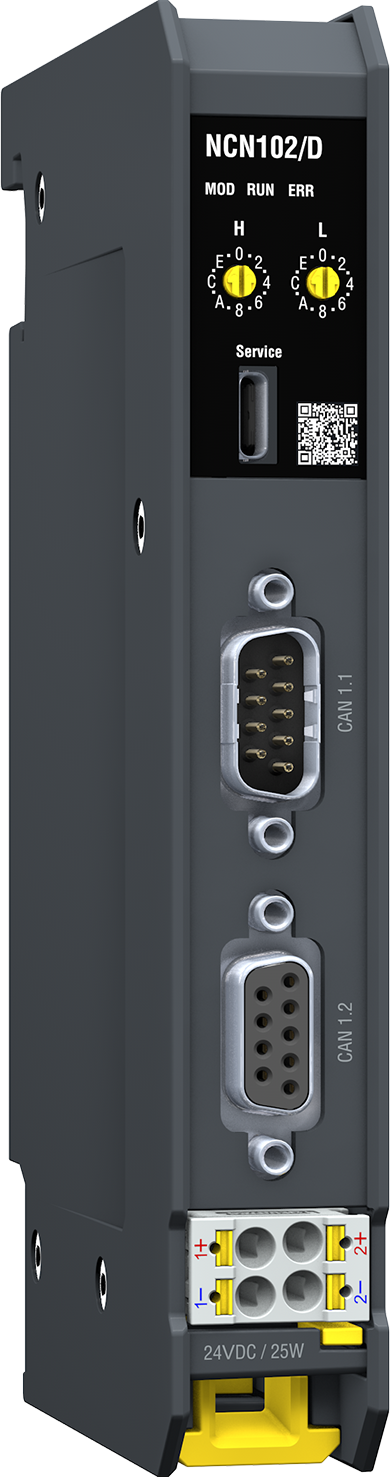

NCN102/D
Node Adapter CAN/CANopen
The NCN102/D node adapter maps the powerful and flexibly configurable M100 station to a standard CANopen interface. The operating modes of the M100 I/O modules are defined during the configuration and are transferred to the station during start-up. The CANopen synchronization features enable clock-synchronous sampling and processing of the I/O signals.
Features
- CAN/CANopen fieldbus IO node adapter
- Connection via 2x D-sub 9 pin
- Integrated termination resistor
- Address configuration: via 2 rotary switches, or via LSS service according to CiA 305
- Baud rate setting: via rotary switches, or automatic detection
- Synchronization: CANopen sync consumer
- Maximum process image per station: 2048 bytes
- Integrated power supply unit for module supply: 20 W
- Diagnostic LEDs according to CANopen standard
Approvals / Certificates
in preparation
