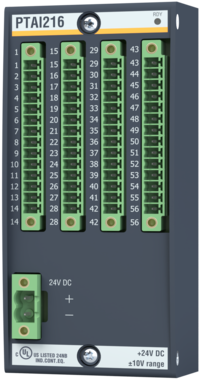

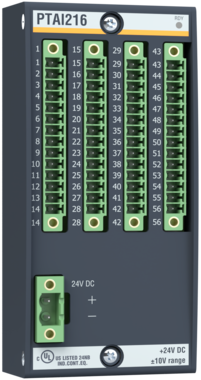

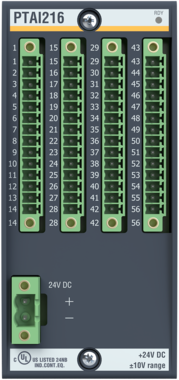

The temperature recording module PTAI216 has four analog input channels and 12 inputs for Pt100/Pt1000 sensors.



Features

  • 4 analog inputs ±10 V / ±1 V / 0 to 20 mA
  • 12 inputs for Pt100/Pt1000 sensors
  • Single-ended or differential inputs for analog signals
  • 2-wire inputs for Pt100/Pt1000 sensors
  • Resolution 14 bit (AI) / 12 bit (Pt100/Pt1000)
  • Sample time 2.5 ms (AI) / 480 ms (Pt100/Pt1000)
  • Channels galvanically isolated from system
  • Wire break detection for the inputs
  • Monitoring of the external power supply
