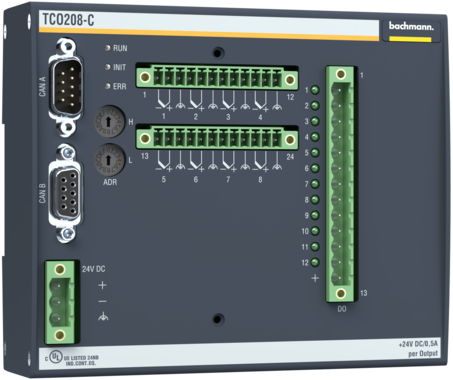

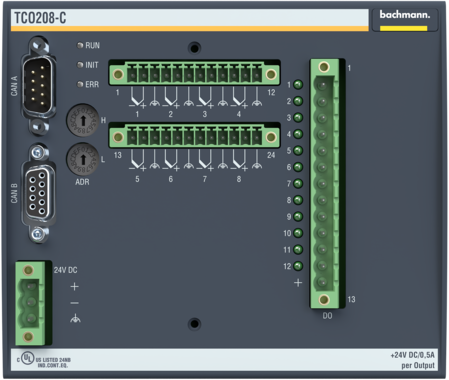

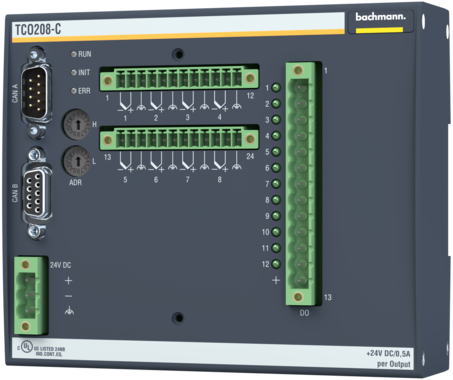

TCO208-C

The temperature I/O modules, TCO208-C and TCO216-C are stand-alone CAN slave modules with 8 or 16 thermocouple inputs and 12 or 24 digital outputs.

• Stand-alone, compact CAN slave module
• Thermocouple inputs for thermocouple types J and K
• Measuring range 0 to +500°C/ +800°C configurable
• Sensor break detection
• Digital outputs each with 1 A
• Supply voltage 18 to 34 VDC
• Operating range 0 to +60°C
• Snappable on EN 50022 backplanes
• CAN node ID can be set (hex switch)
• Baud rate is adjustable (hex switch)
