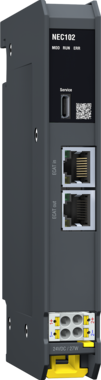

NEC102_iso_left
NEC102_front

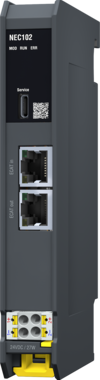

NEC102_iso_right
1 / 3

The NEC102 node adapter maps the powerful and flexibly configurable M100 station to a standard EtherCAT interface. The operating modes of the M100 I/O modules are defined during the configuration and are available to both the Bachmann main device and also to main devices of other manufacturers. Thanks to distributed clocks on the EtherCAT stations, the implementation of short control intervals across the entire control system is given.



Features

  • EtherCAT fieldbus IO node adapter
  • 2x RJ45 Connections (1x EtherCAT in, 1x EtherCAT out)
  • Address configuration: automatic / SW
  • Synchronization: Distributed clocks (DC)
  • EtherCAT PDO/SDO, FoE
  • Maximum process image / station: 14 506 bytes
  • Minimum bus cycle time: 100 μs
  • Integrated power supply unit for module supply: 20 W
