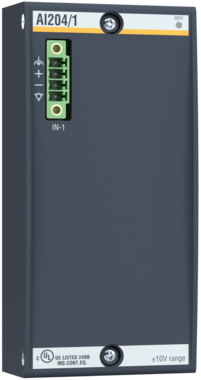

ai204_1_links

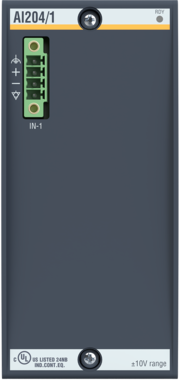

ai204_1_frontal

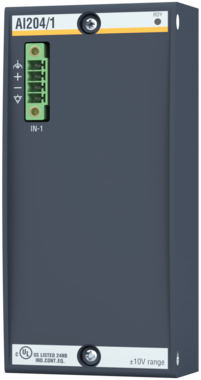

ai204_1_rechts

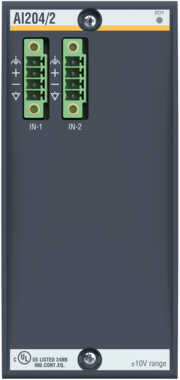

ai204_2_frontal

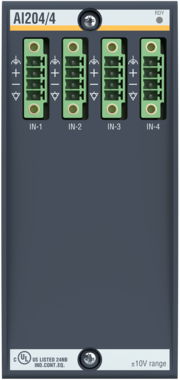

ai204_4_frontal
1 / 5

The analog input module AI204/x offers 1, 2 or 4 high-resolution 16 bit analog input channels depending on the model. The extraordinarily high accuracy with integrated temperature calibration predestine this unit for demanding measurement applications for industrial processes.



Features

  • 1, 2 or 4 analog inputs
  • Input voltage -10 V to +10 V
  • 16 bit resolution
  • Sampling time from 20 μs
  • Inputs can be synchronized
  • Galvanic isolation between channels
  • Galvanic isolation from the system
  • Temperature calibration
  • Connection possibility differential
  • Internal voltage generation is monitored

Approvals / Certificates

AI204/x EN
PDF - 413 Kb
AI204/x EN
AI204/x DE
PDF - 414 Kb
AI204/x DE
