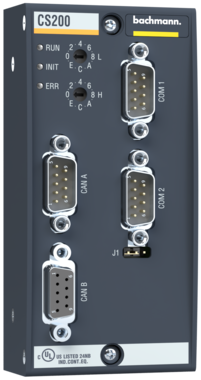

cs200_links

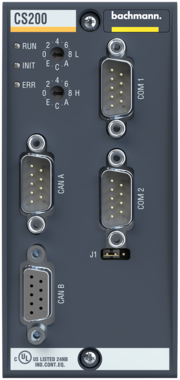

cs200_frontal

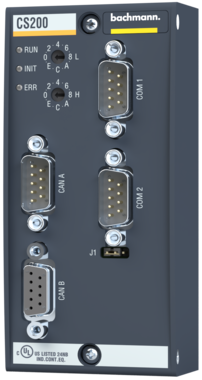

cs200_rechts

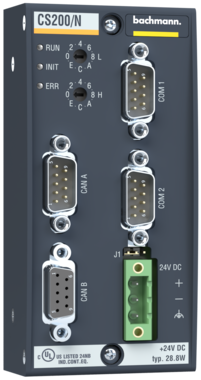

cs200_n_links

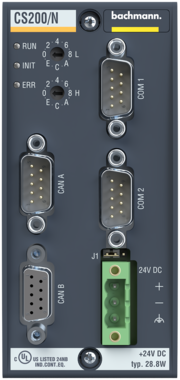

cs200_n_frontal

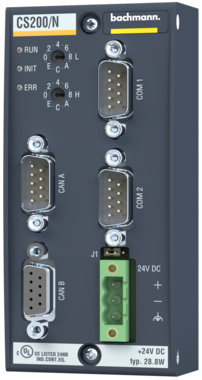

cs200_n_rechts
1 / 6

The CS200/x is the head module for CANopen slave stations. The CS200/x allows modular CANopen slave stations to be set up from the M200 modules. The same modules are used as for local stations, which simplifies stockkeeping and consistently ensures the same technical data.



Features

  • Head module for CANopen slave stations
  • Up to 30 I/O modules per slave station
  • Optional integrated power supply
  • Transfer rate 10 Kbaud to 1 Mbaud
  • Bus length to 5000 m (signal repeater required)
  • Two internally connected CAN interfaces for loopthrough of the cable
  • Galvanic isolation between CAN interfaces and control electronics
  • Node address can be set via rotary switch
  • 2 serial interfaces (COM 1/2)
  • External 24 V power supply (CS200/N)
