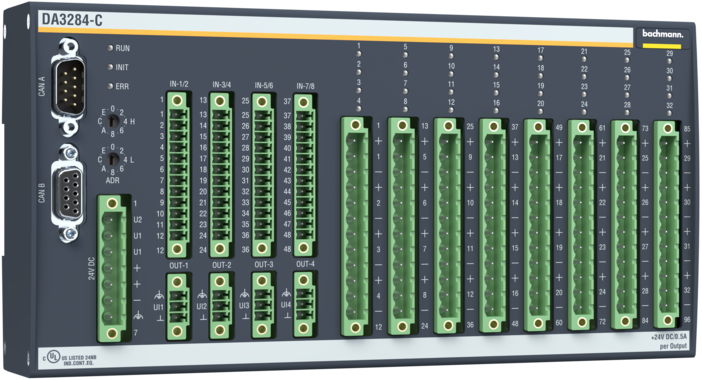

da3284_c_links

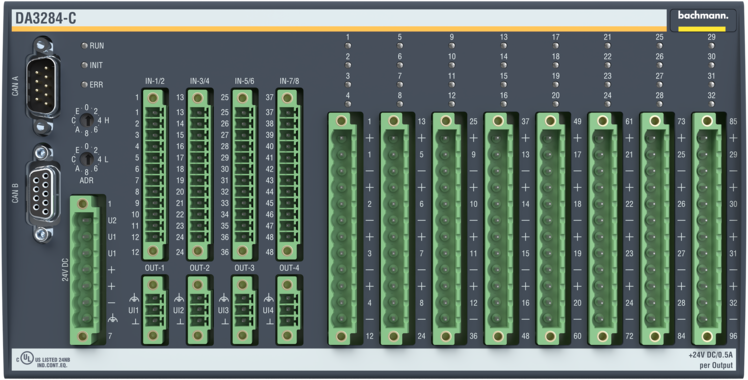

da3284_c_frontal

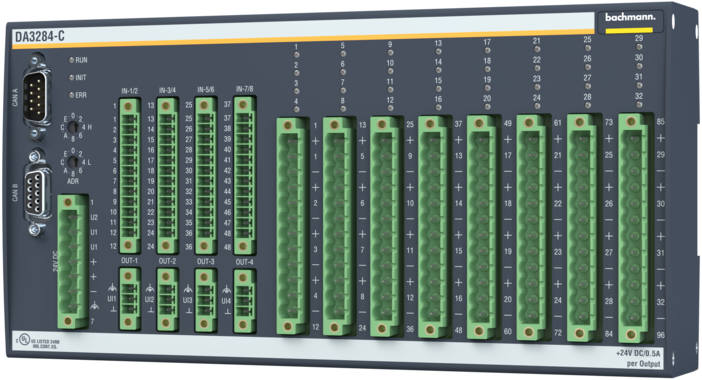

da3284_c_rechts
1 / 3

Noteworthy compactness and a clever mix of possible signal types are offered by the CAN slave DA3284-C. As a stand-alone fieldbus module (CANopen), the module offers the complete I/O spectrum already integrated for small applications or distributed signal connection points. It is the ideal addition to the familiar family of CAN digital modules and is an optimum »all-in-one« peripheral for small applications.

The channel-specific programmable mode (on/off or applied standard signal) enables the unit to be adapted ideally to a wide range of applications without any interface converter. The robust design and processing quality, its outstanding technical specifications, seldom available from the usual fieldbus peripherals, are very impressive.



Features

  • Compact CAN slave I/O module
  • 8 analog inputs
    ±10 V, ±1 V, Pt100, Pt1000, 0 (4) to 20 mA
  • 4 analog outputs
    ±10 V or 0 (4) to 20 mA configurable
  • 16 digital inputs
  • 16 digital inputs or outputs
    (individually configurable)
  • 2 integrated counter inputs
  • Digital outputs each with 0.5 A continuous current
  • Error detection for digital and analog channels
  • Full wiring without additional backplanes
  • Powerful 32-bit processor for fast cycle times
