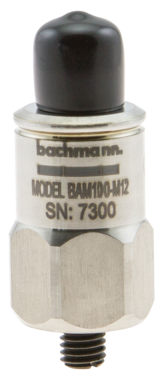

BAM100

Bachmann offers industry-standard piezoelectric accelerometers. The proven acceleration sensors have an extremely robust housing, they are hermetically sealed and insulated. Thus they offer perfect function even under demanding environmental conditions.

Minimally-invasive mounting on the measurement object and small dimensions ensure that these acceleration sensors are also suitable for measuring points that are difficult to access. To optimize cable installation, for the 4-pin M12 connector we offer either molded straight or molded angled plug connectors.

The integrated electronics of the piezoelectric acceleration sensors offer sensitivity to frequencies of 0.5 Hz and a linear frequency response over a wide range. The signals are delivered in accordance with the IEPE constant current method and are connected on the IEPE inputs of the AIC2xx modules (and activated by these modules).

The BAM100 sensor has a nominal sensitivity of 100 mV/g, generally used for rotating machines with speeds over 2 Hz (120 rev/min).
