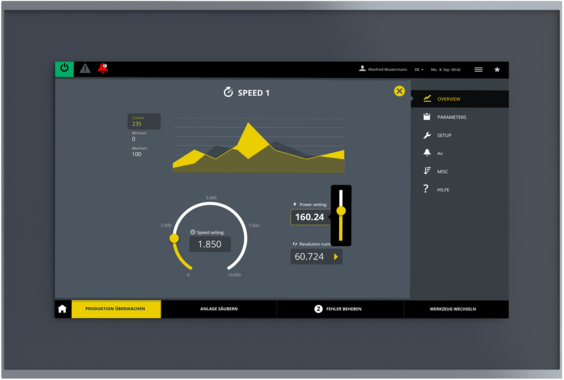

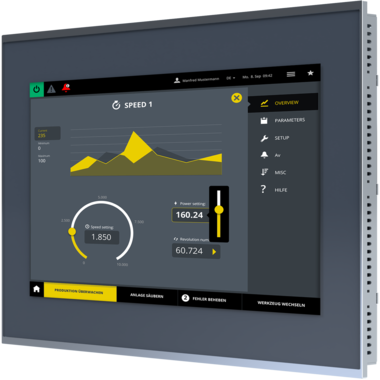

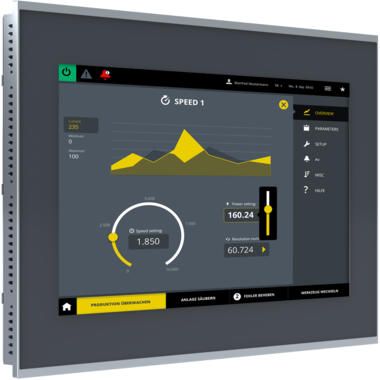

The specifications and interfaces of the OT1200 web terminal make it the ideal choice for small and medium web visualizations, such as atvise®. Brilliant displays with high brightness, strong colors, very good viewing angles and a long service life make a lasting impression. The modern widescreen diagonals (7″, 10.1″, 12.1″, 15.6″) offer high resolutions, e.g. 15.6″ with Full-HD. The display lifetime (half brightness) of over 50,000 hours lies within the premium segment.

User input via projected-capacitive (PCAP) multi-touchscreens allows the use of multi-touch-gestures (e.g. pinch-to-zoom, swipe, two-hand operation). The visually appealing, hardened glass surface is easy to clean. The exclusive use of industrial components guarantees a long service lifespan and availability. Permanently soldered RAM and eMMC memories, as well as the absence of any moving parts, ensure maximum resistance to shock and vibration. High temperature ranges of up to 60 °C allow operation under harsh environments.

The pre-installed browser is designed for industrial applications. An integrated onscreen-keyboard enables convenient user input and reduces development efforts. Unwanted, automatic updates are prohibited, ensuring that only released software is used in the field, reducing downtime to a minimum.

The Linux system (based on Debian) provides an easy to use, web-based configuration tool. Configuration settings can be changed directly on the device or remote via browser. The system software includes further useful services, e.g. SSH, NTP, VNC, as well as a Web-API for secure hardware access. The API can be used to react to hardware keys, control LEDs and display brightness, and much more.

We will gladly supply your required software configuration direct from the factory: unpack, connect, done.



  • Pre-installed and easy to configure web-browser
  • Gesture control with PCAP Multi-Touch
  • Ideal for all kinds of web-visualization
  • Visualize data from OPC-UA sources in combination with atvise®
  • Brilliant display with high resolutions in 7″, 10.1″, 12.1″ and 15.6″ widescreen
  • Cortex®-A9 Dual-Core CPU, 2x ETH 10/100, 2x USB, CFast-Slot, 4 GB eMMC onboard
  • Robust design and extended temperature range up to +60 °C
