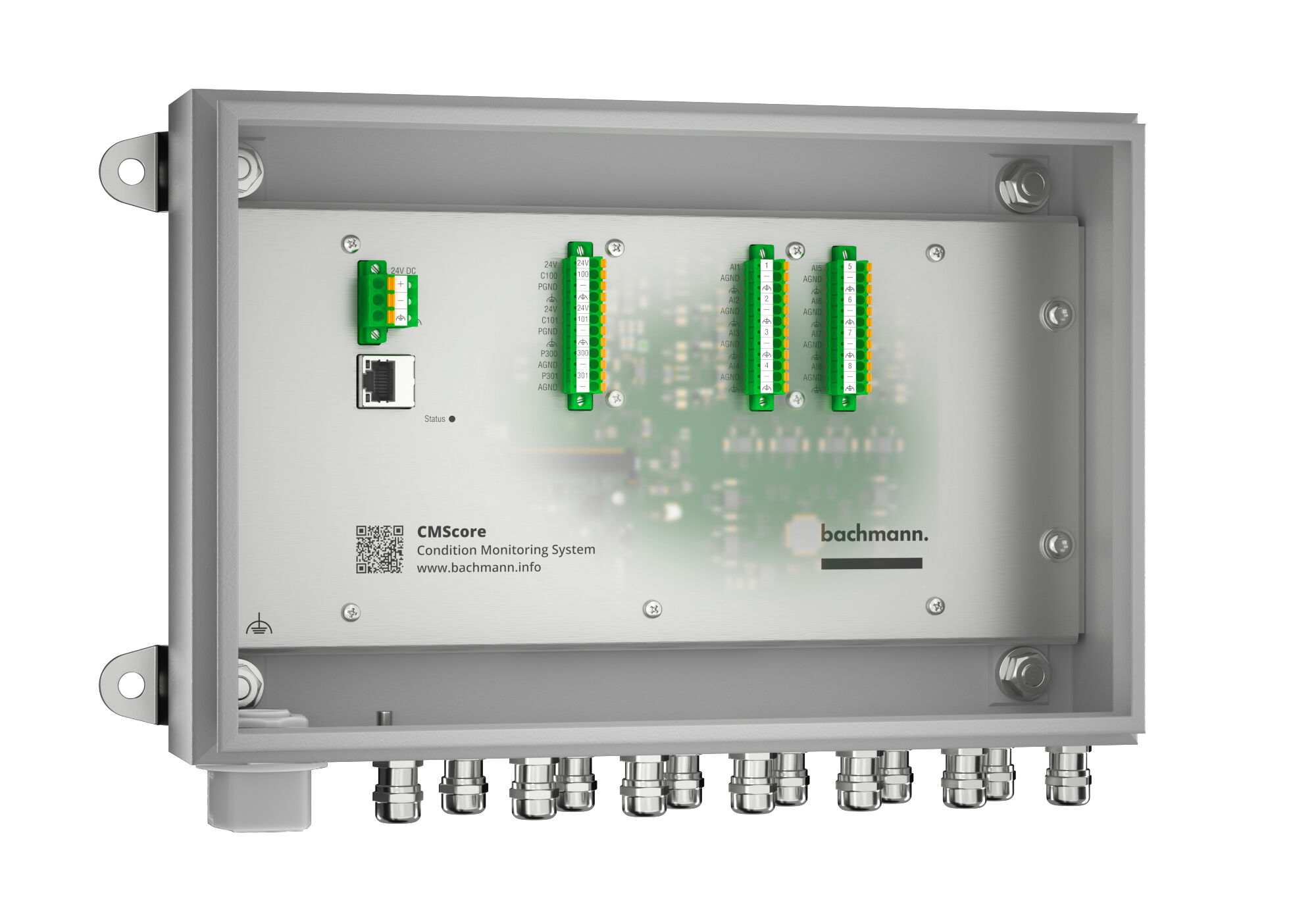

CMScore

CMScore is an entry-level condition monitoring system (CMS) for reliable monitoring of drivetrains. It was specially developed for retrofitting and replacing existing monitoring solutions and offers a cost-optimized solution without compromising data and diagnostic quality. With high sampling rates, the system precisely records the signals from connected IEPE acceleration sensors¹⁾ and automatically transmits them to a central WebLog Suite server infrastructure for analysis and reporting. The compact design, low weight, and 24 V DC power supply enable easy integration into existing machines. Existing IEPE sensors can continue to be used when replacing legacy systems with CMScore.

8 IEPE channels, 2 speed inputs, and 2 additional analog inputs are available as standard for signal acquisition.

Installation is quick and easy – either by Bachmann or by the customer themselves. The necessary sensors, connection cables and installation materials can be provided by Bachmann.

The CMScore can be combined with all of Bachmann’s service levels for condition monitoring. Bachmann’s DNV-certified monitoring team can carry out the analysis. Alternatively, the system can be fully integrated into a customer´s own monitoring center, either via the customer’s own infrastructure or via a WebLog Suite infrastructure hosted by Bachmann. WebLog Suite offers a standardized platform for monitoring, analysis, and reporting – as well as for other Bachmann CMS variants and 3rd-party systems.

¹⁾ CMScore supports the widely used IEPE standard (Integrated Electronics Piezo-Electric), which enables the use of robust piezoelectric sensors and simple cabling.

• 8 IEPE channels, 2 speed inputs, 2 analog inputs
• 24 V DC power supply
• High sampling rates up to 25.6 kHz
• Dimensions: 300 mm × 200 mm × 80 mm
• Weight: 2.6 kg
• Degree of protection IP54

Why CMScore?

• Cost-effective solution for retrofitting and replacement
• Compact dimensions
• Installation is simple via plug-and-play
• High data and diagnostic quality
• Compatible with existing IEPE sensors when replacing older CMS
• Direct connection to the WebLog Suite for analysis, reporting, and remote monitoring

Contact

Contact us for a personal consultation or an individual offer: info@bachmann.info | www.bachmann.info
