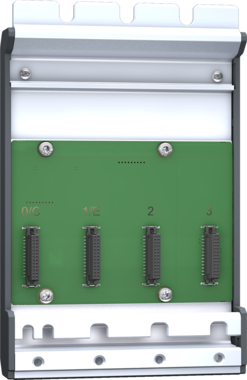

BPR104_iso_left

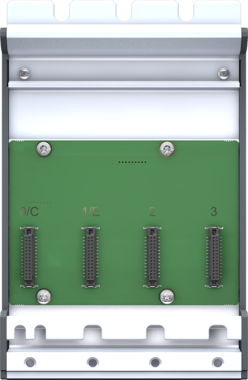

BPR104_front

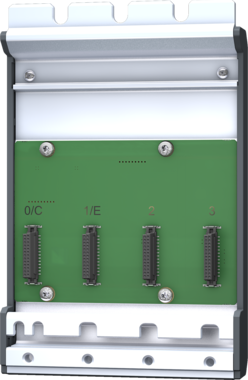

BPR104_iso_right

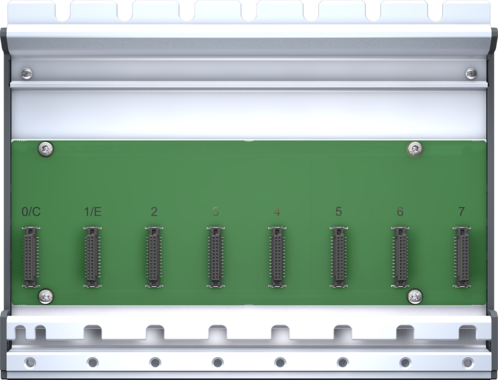

BPR108_front

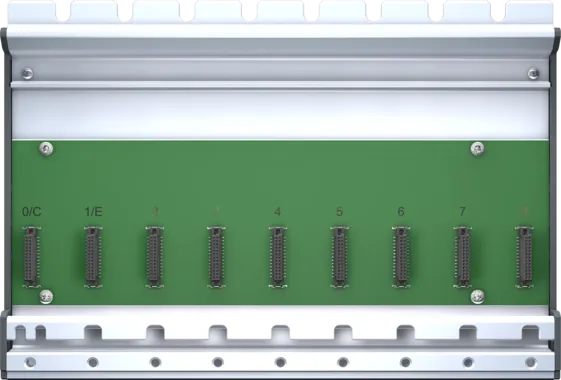

BPR109_front

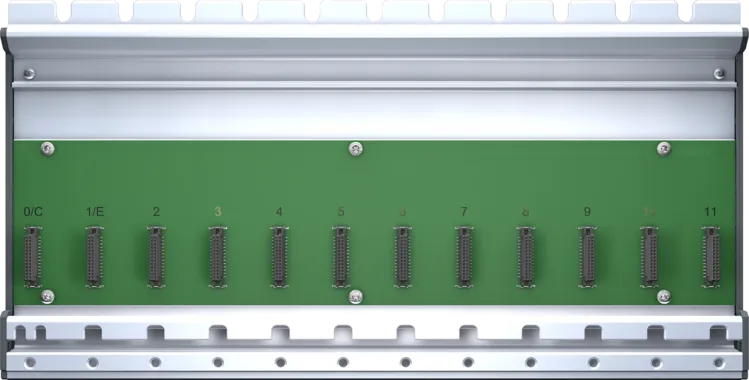

BPR112_front

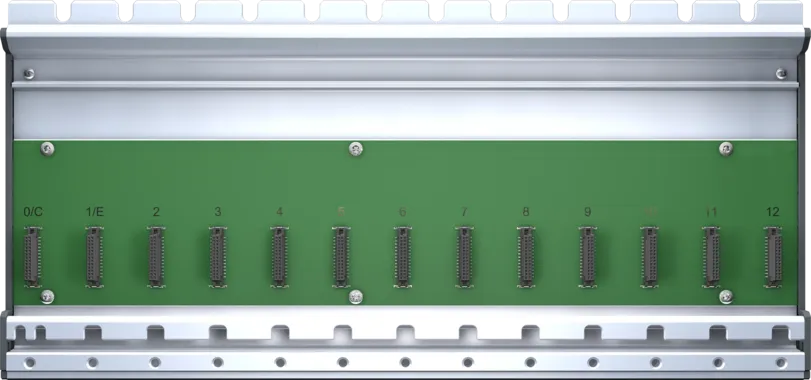

BPR113_front

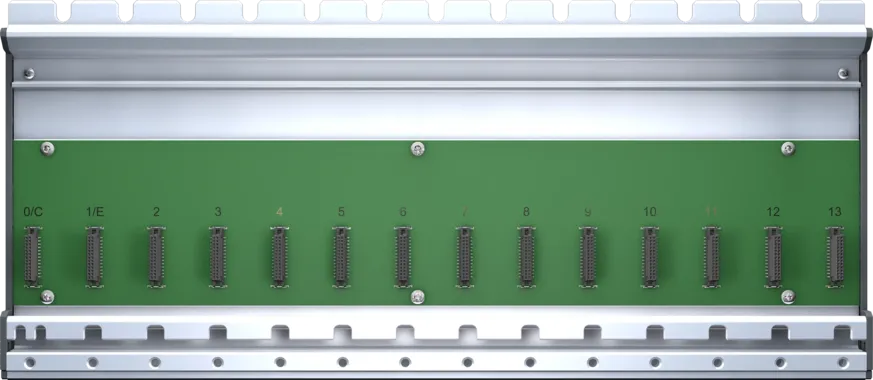

BPR114_front

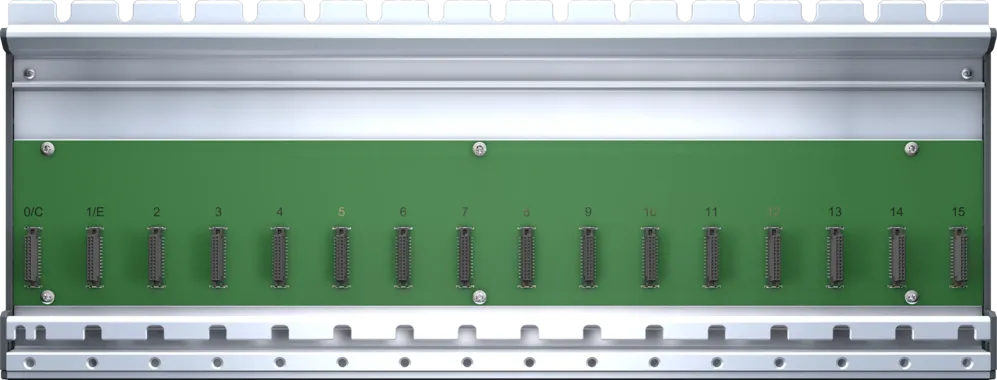

BPR116_front

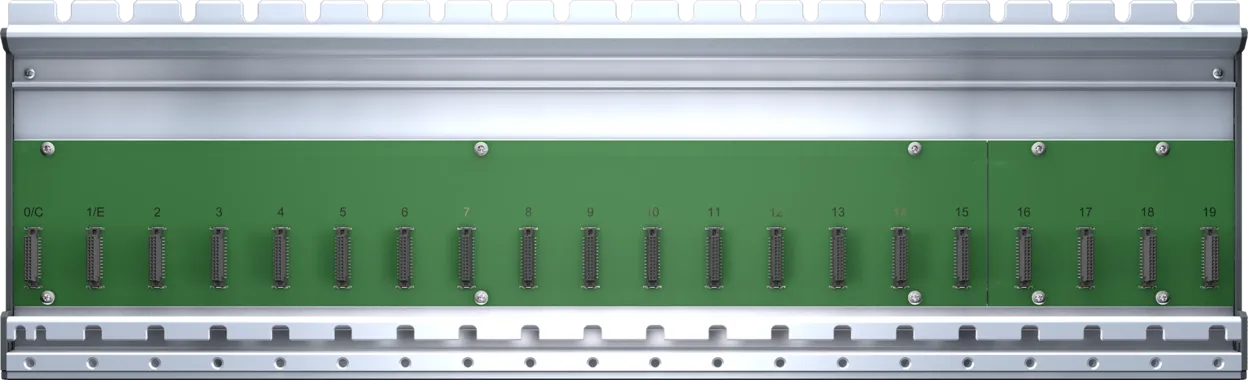

BPR120_front

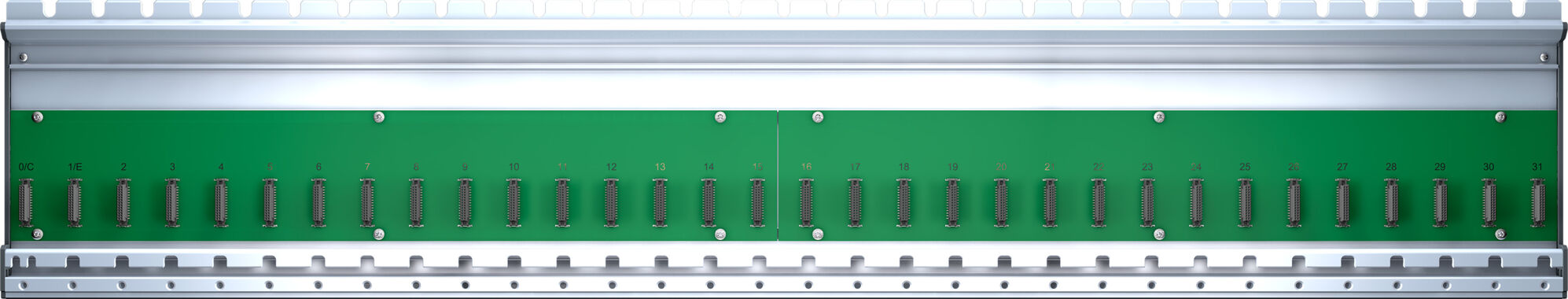

BPR132_front
1 / 11

The backplane combines the node adapter and the I/O modules into a mechanically robust, EMC compliant unit that can be fitted on a standard DIN mounting rail and also removed in an instant. Fully fitted I/O stations can thus be pretested after mounting and transferred to the application without further modification. This assembly enables individual modules to be exchanged and retrofitted without having to remove the unaffected modules

The backplane enables real-time communication between modules as well as with the node adapter, provides the power supply to the logic side of the modules and enables module-to-module communication.



Features

  • M100 system backplane for DIN rail mounting
  • 4 to 32 slots
  • Mechanically robust, self-supporting base for modules
  • Module exchange without the removal of other modules
  • Enables complete pre-assembly and testing
  • Any slots possible as reserve (gaps)
  • Integrated ambient monitoring

Approvals / Certificates

Marine classification in preparation
