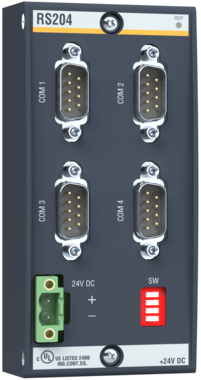

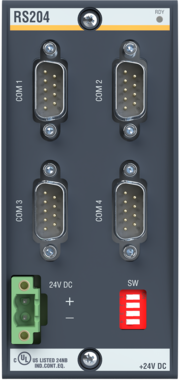

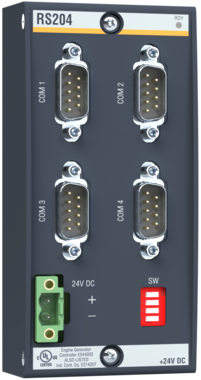

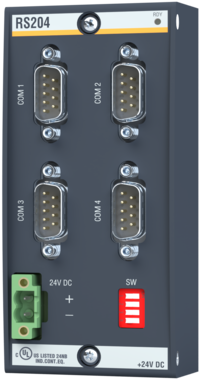

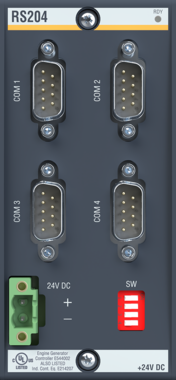

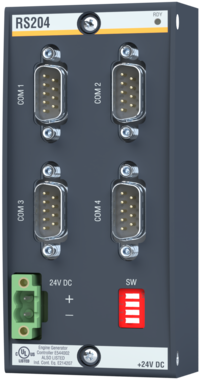

The interface module RS204 is used to connect four asynchronous serial interfaces to the M1 controller.



Features

  • 4 interfaces on one module
  • Any number of interfaces possible per controller
  • RS232/RS422/RS485 can be combined
  • High speed interfaces with up to 1.5 Mbaud
  • Auto-flow control for automatic handshake
  • Integrated terminating resistors (connect/disconnect)
  • Interfaces galvanically isolated
