BS200/E

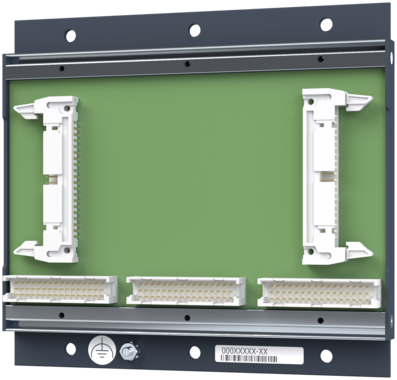

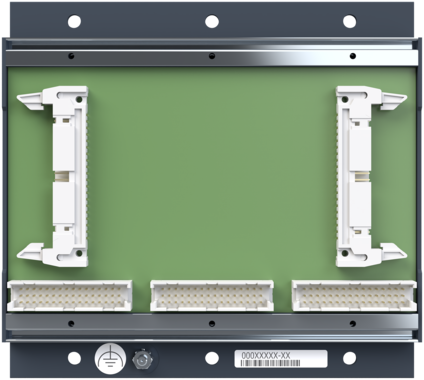

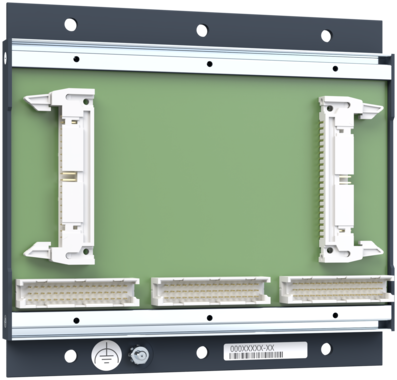

The BS200/E backplanes − like those of the BS200 series − mechanically and electrically connect the hardware modules of the M200 control system, such as power supply unit, processor module, and I/O modules.

The E-version, with its robust design, enables direct mounting on the rear panel of the control cabinet, without DIN rail for optimal thermal and mechanical connection. This coupling allows the heat to be effectively dissipated via the rear wall to the switch cabinet housing application-specifically, thereby relieving the heat dissipation of the interior significantly. In addition, often maintenance-intensive active cooling of the components in the interior can be dispensed with. A functional earth connection is prepared.

• 3 to 10 module slots
• Seamless connection/expandable
• Stable mechanics / compact design
• Vibration proof fixing of modules
• Directly mounting
