DIO32-C
CAN Slave Digital-Ein-/Ausgangsmodule

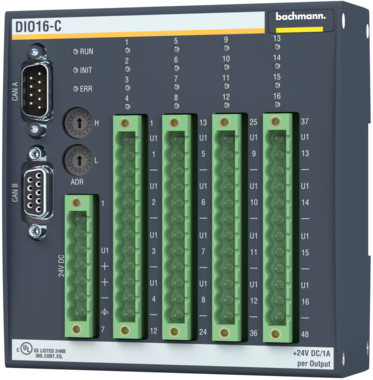

The digital I/O modules DIO16-C, DIO32-C or DIO264-C are standalone CAN slave modules with 16, 32 or 64 digital input/output channels.
Features
- Stand-alone, compact CAN slave module
- 16/32 channels freely configurable as input or output
- Digital outputs each with 1 A continuous current
- Two internally connected CAN interfaces for loopthrough of the cable
- Galvanic isolation between CAN interfaces and control electronics
- Baud rate and node ID can be set via rotary switch
- Supply voltage 18 V DC to 34 V DC
- Field of application 0 °C to +60 °C with no additional cooling
- Full wiring without additional backplanes
- Snappable on EN 50022 backplanes
