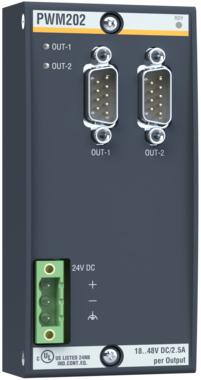

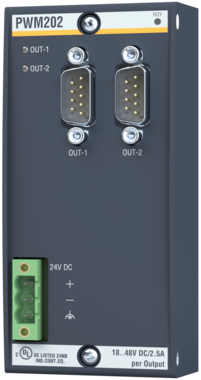

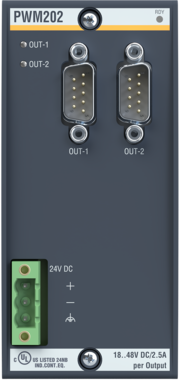

The pulse width modulation module PWM202 has two power outputs for direct activation of inductive or ohmic loads, such as DC motors, immersion coils, etc. with pulse width modulated signals.
- 2 pulse-width modulated output channels
- 2 shielded DSub connectors for output channels
- Status indication: LED (green) per output
- Choice of high-power or TTL output level
- Monitoring of the load current
- Monitoring of the external supply voltage
- Monitoring of the internal temperature
