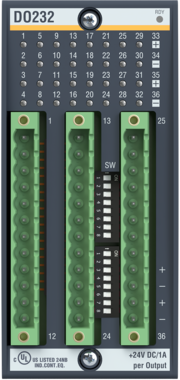

do232_frontal

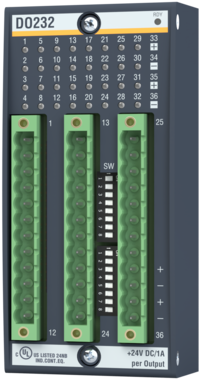

do232_rechts
1 / 3

The digital output modules DO216, DO232 and DO232 CC are suitable for connecting up to 16 or 32 digital signal receivers (relays, contactors, signal lamps, valves, etc.) to the M1 controller.



Features

  • Digital output modules with 16 or 32 outputs
  • Outputs 24 VDC (DO216, DO232, DO232 CC)
  • 16 outputs with 2.5 A or 32 outputs with 1 A
  • Outputs parallel connectable
  • Monitoring of short circuit, wire break and overload
  • Compact design
  • Status display for each channel via LED

Approvals / Certificates

Datasheet

DO232

DO216, DO232 EN
PDF - 150 Kb
DO216, DO232 EN
DO216, DO232 DE
PDF - 157 Kb
DO216, DO232 DE
